This PTFE Standard Sealed Electrochemical Cell is designed for precision-controlled electrochemical experiments requiring a chemically inert and airtight environment.
Constructed entirely from high-purity PTFE, it offers excellent resistance to acids, alkalis, and organic solvents. The cell includes a PTFE body and lid, ensuring complete chemical compatibility and long-term durability.

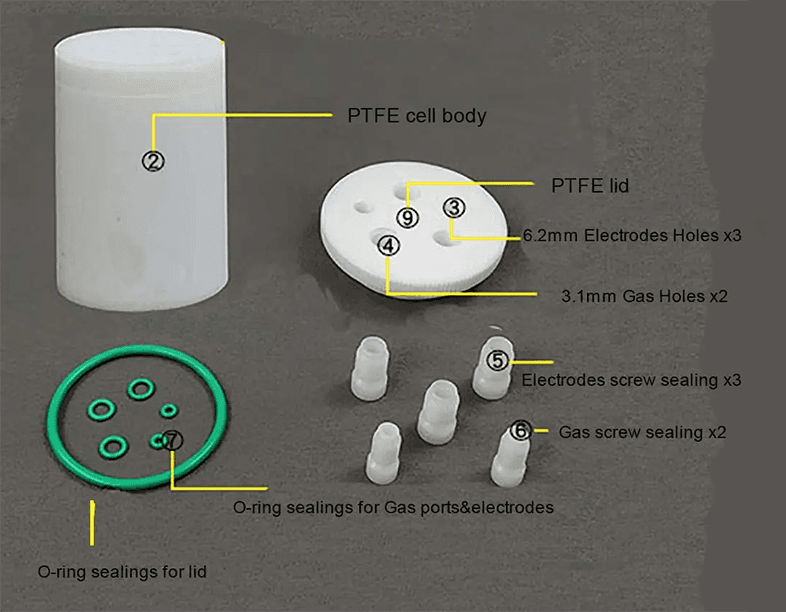

Equipped with six O-ring sealings (one for the lid, three for electrode holes, and two for gas inlet/outlet ports) this cell provides a secure and stable seal during operation. The five-screw sealing design ensures firm closure and minimizes leakage risk, even under extended experimental conditions.
Key Features:
Capacity: 10 to 500 ml
Material: High-purity PTFE (Polytetrafluoroethylene)
Structure: One PTFE cell body and one PTFE lid
Sealing:
6 O-ring sealings (1 for lid, 3 for electrodes, 2 for gas ports)
5 screw sealing design for airtight operation
Chemical Resistance: Excellent against strong acids, bases, and solvents
Temperature Stability: Suitable for a wide range of electrochemical conditions
| Volumes of a chamber in ml | Chamber Size (Diameter x Height in mm) | Electrodes Holes (Quantity x Diameter in mm) | Gas Holes (Quantity x Diameter in mm) |
| 10 ml | Φ20 x 30 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |

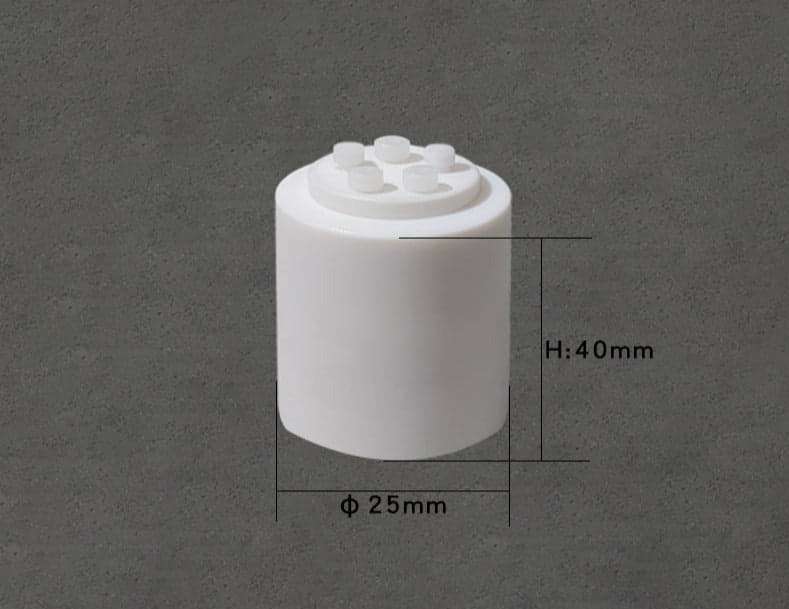

| 20 ml | Φ25 x 40 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |

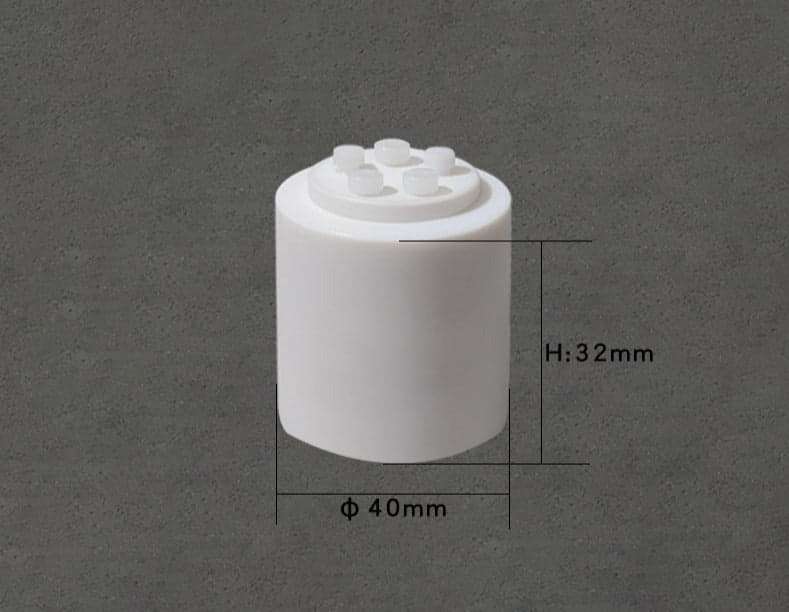

| 30 ml | Φ40 x 35 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
| 50 ml | Φ40 x 48 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
| 100 ml | Φ50 x 60 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
| 150 ml | Φ60 x 62 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
| 200 ml | Φ60 x 80 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |

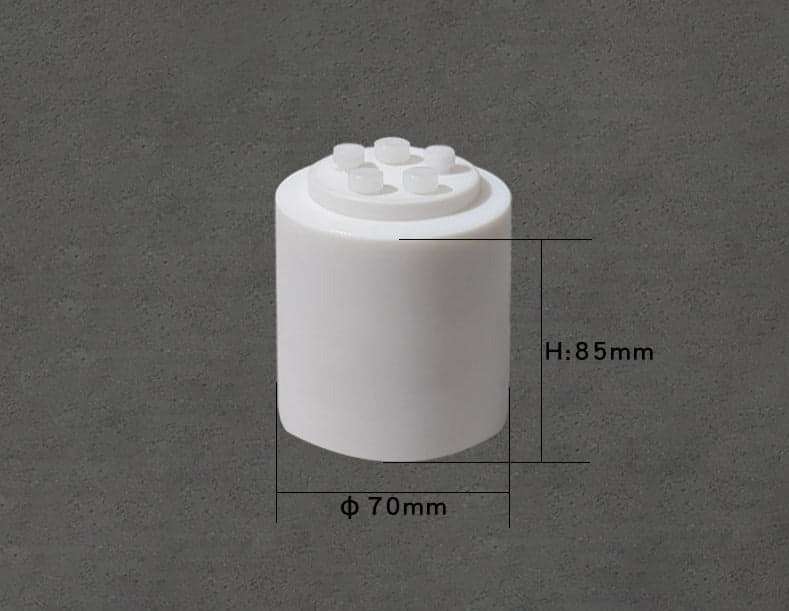

| 300 ml | Φ70 x 88 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
| 500 ml | Φ90 x 90 mm | 3 x Φ6.2 mm | 2 x Φ3.1 mm |
